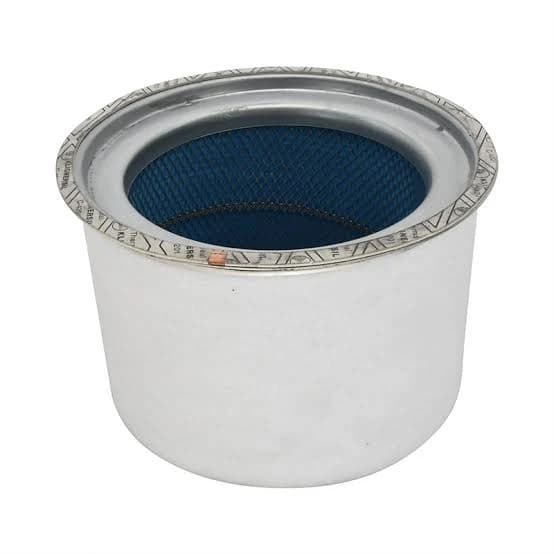

Ingersoll-Rand Air/Oil Separator: 54601513
- Dimensions: 7.5" Height (192 mm) × 10.71" Body Outer Diameter (276 mm) | 11.73" Flange Outer Diameter (295 mm).
- Filtration Efficiency: 99.99% efficiency using multi-layered, ultra-fine German HV/Lydall fiberglass composite media.
- Performance Rating: Filters oil mist particles down to ≤0.1 µm .
- Oil Carryover: Restricts residual downstream oil to <3 ppm (mg/m³) .
- Differential Pressure: Initial restriction pressure drop of ≤0.02 MPa (0.2 bar) .
- Service Life: Rated for 3,500 to 5,200 operating hours (commonly swapped at 4,000-hour or 1-year intervals).
$345.00
