Chicago Pneumatic•Air Compressors•Stock in Rock Hill, SC

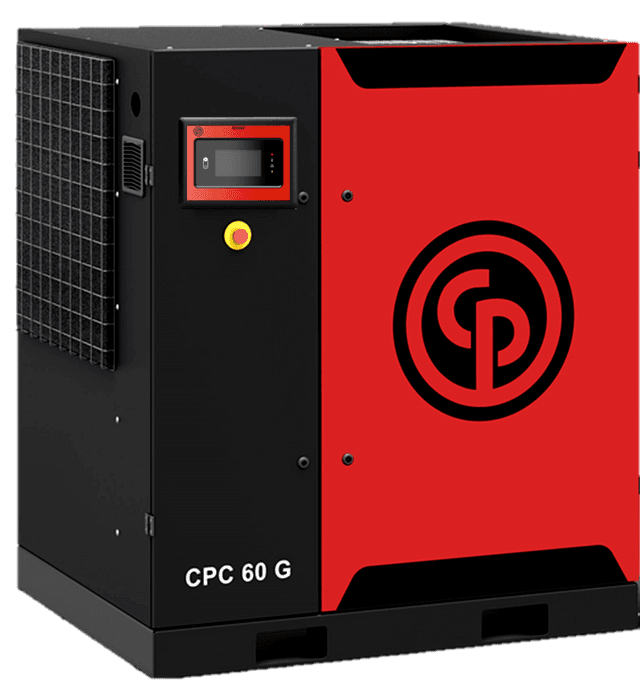

Chicago Pneumatic CPCg 60, 60hp Rotary Screw Air Compressor

Chicago Pneumatic Model CPCg 60, comes with TEFC tri-voltage motor with optional refrigerated air dryer.

Operating Pressure

  • 100 – 175 psig
  • Flow Rate: 281.2 – 216.8 cfm (model/pressure dependent)
  • Total absorbed power at full load (100 psi): 53Kw, (125 psi): 53.6Kw, (150): 52.6Kw, (175): 51.4KW
  • Power Supply: 230/3/60, 460/3/60Hz

Cooling Type

  • Air-cooled, oil-injected rotary screw Sound Level: 72 dBA
  • Duty Cycle: 100% continuous operation

Controller

  • ES4000 Touch Screen, electro-pneumatic, Dimensions (Base Mount): 52 x 32.7 x 61.2 in.
  • Shipping Weight: 1424-1684 lbs. (configuration dependent)
Starting at$31,775.00
Quantity
1

Configure

Taxes & shipping calculated at checkout.
