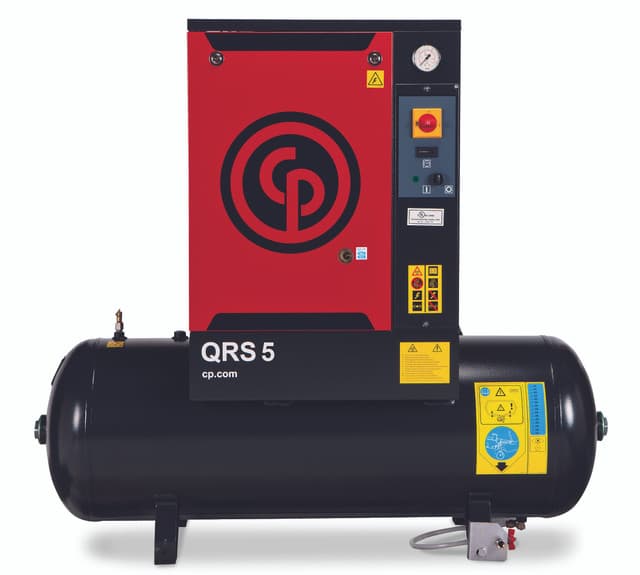

Chicago Pneumatic QRS-5.5, 5hp Rotary Screw Air Compressor

Chicago Pneumatic, Model QRS5.5, comes with Tri-voltage motor with optional tank and refrigerated air dryer.

Operating Pressure

• 145 psig
• Flow Rate: 9.4 cfm (model/pressure dependent)
• Total absorbed power at full load (145 psi): 3.7Kw.
• Power Supply: 208–230/460V or 575V, 3-phase, 60Hz

Cooling Type

• Air-cooled, oil-injected rotary screw Sound Level: 62 dBA
• Duty Cycle: 100% continuous operation

Controller

• Analog, electro-pneumatic, Dimensions (Base Mount): 24.4 x 24.8 x 37.4 in
• Dimensions (Tank Mount): 56.3 x 23.6 x 49.6 in
• Shipping Weight: 298-474 lbs. (configuration dependent)
