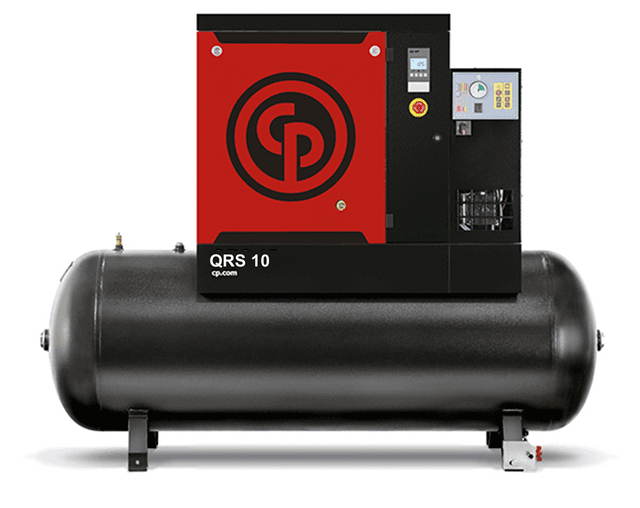

Chicago Pneumatic QRS-10, 10hp Rotary Screw Air Compressor

Chicago Pneumatic, Model QRS 10, comes with Tri-voltage motor with optional tank and refrigerated air dryer.

Operating Pressure

• 100-175 PSIG,
• Flow Rate: 40.5-28.3 cfm (model/pressure dependent)
• Total absorbed power at full load (100 psi): 9.1Kw, (175 psi):9.5Kw, Motor
• Power Supply: 208–230/460V or 575V, 3-phase, 60Hz

Cooling Type

• Air-cooled, oil-injected rotary screw Sound Level: ~65 dBA
• Duty Cycle: 100% continuous operation

Controller

• ES4000-Connect Controller, Dimensions (Base Mount): ~33 x 26 x 38 in
• Dimensions (Tank Mount): ~76 x 25 x 57 in
• Weight: ~375 – 666 lbs. (configuration dependent)
