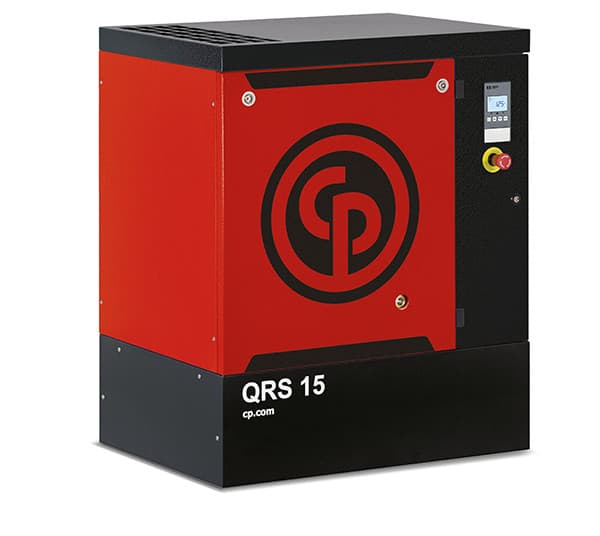

Chicago Pneumatic QRS-15, 15hp Rotary Screw Air Compressor

Chicago Pneumatic, Model QRS 15, comes with Tri-voltage motor with optional tank and refrigerated air dryer.

Operating Pressure

• 100-175 PSIG,
• Flow Rate: 58.2-43.9 cfm (model/pressure dependent)
• Total absorbed power at full load (100 psi): 12.1Kw, (175 psi):12.2Kw, Motor
• Power Supply: 208–230/460V or 575V, 3-phase, 60Hz

Cooling Type

• Air-cooled, oil-injected rotary screw Sound Level: 69 dBA
• Duty Cycle: 100% continuous operation

Controller

• ES4000-Connect Controller, Dimensions (Base Mount): 33 x 26 x 38 in

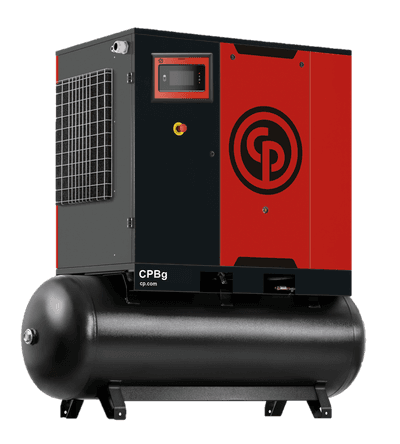

• Dimensions (Tank Mount): 76 x 25 x 57 in
• Weight: 622 – 699 lbs. (configuration dependent)
