Chicago Pneumatic•Air Compressors•Stock I Rock Hill, SC

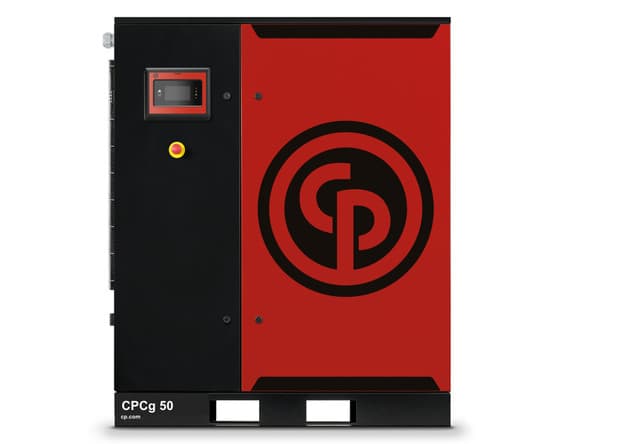

Chicago Pneumatic CPCg 50, 50hp Rotary Screw Air Compressor

Chicago Pneumatic Model CPCg 50, comes with TEFC tri-voltage motor with optional refrigerated air dryer.

Operating Pressure

  • 100 – 175 psig
  • Flow Rate: 239.6 – 188.4 cfm (model/pressure dependent)
  • Total absorbed power at full load (100 psi): 44.2Kw, (125 psi): 44.1Kw, (150): 43.3Kw, (175): 45.1KW
  • Power Supply: 230/3/60, 460/3/60Hz

Cooling Type

  • Air-cooled, oil-injected rotary screw Sound Level: 67 dBA
  • Duty Cycle: 100% continuous operation

Controller

  • ES4000 Touch Screen, electro-pneumatic, Dimensions (Base Mount): 52 x 32.7 x 61.2 in.
  • Shipping Weight: 1391-1634 lbs. (configuration dependent)
Starting at$29,875.00
Quantity
1

Configure

Taxes & shipping calculated at checkout.
