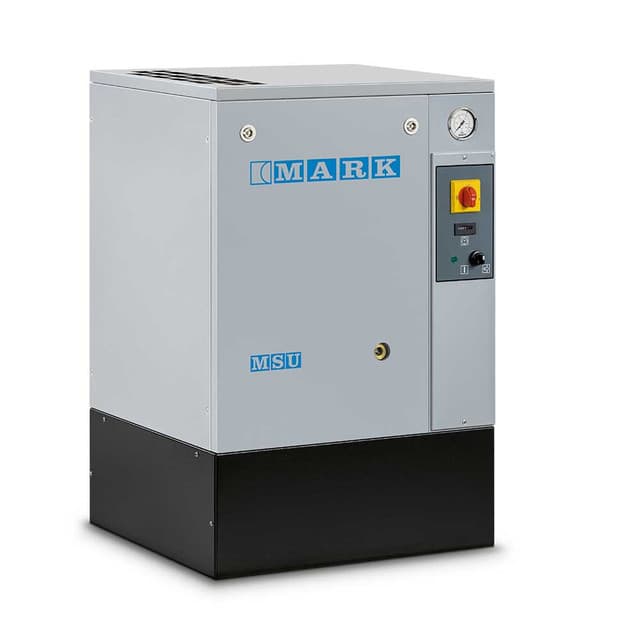

Mark MSU-11, 10hp Rotary Screw Air Compressor

The Mark Model MSU11, comes with tri-voltage or single phase motor with optional tank and refrigerated air dryer.

Operating Pressure

• 116 – 145 psig
• Flow Rate: 37.5 – 33.9 cfm (model/pressure dependent)
• Total absorbed power at full load (116 psi): 9.1Kw, (145 psi): 9.3Kw
• Power Supply: 208–230/460V/3/60, 60Hz

Cooling Type

• Air-cooled, oil-injected rotary screw Sound Level: 66 dBA
• Duty Cycle: 100% continuous operation

Controller

• Analog, electro-pneumatic, Dimensions (Base Mount): 33.7 x 26.6 x 38.6 in
• Dimensions (Tank Mount): 76.2 x 25.4 x 57.9 in
• Shipping Weight: 375-661 lbs. (configuration dependent)
