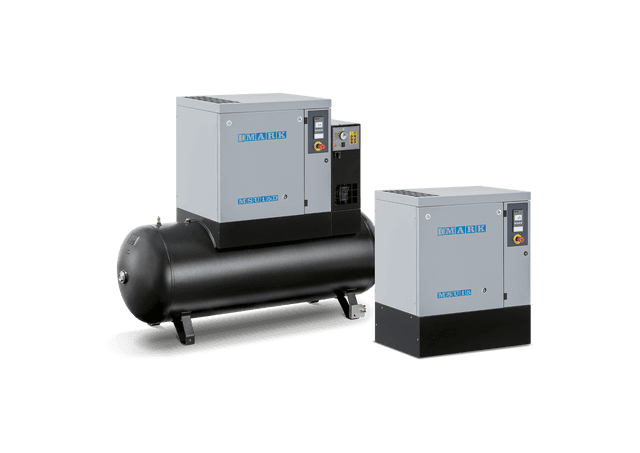

Mark MSU-20, 20hp Rotary Screw Air Compressor

The Mark Model MSU20, comes with TEFC tri-voltage motor with optional tank and refrigerated air dryer.

Operating Pressure

• 116 – 145 psig
• Flow Rate: 61.2 – 60.4 cfm (model/pressure dependent)
• Total absorbed power at full load (116 psi): 15Kw, (145 psi): 15.3Kw
• Power Supply: 208–230/460V/3/60, 60Hz

Cooling Type

• Air-cooled, oil-injected rotary screw Sound Level: 71 dBA
• Duty Cycle: 100% continuous operation

Controller

• Analog, electro-pneumatic, Dimensions (Base Mount): 33.7 x 26.6 x 38.6 in
• Dimensions (Tank Mount): 76.2 x 25.4 x 57.9 in
• Shipping Weight: 441-728 lbs. (configuration dependent)
