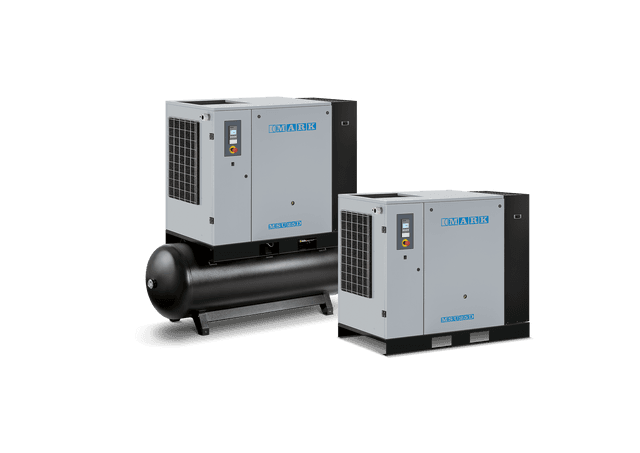

Mark MSU-25, 25hp Rotary Screw Air Compressor

The Mark Model MSU25, comes with TEFC tri-voltage motor with optional tank and refrigerated air dryer.

Operating Pressure

• 116 – 145 psig
• Flow Rate: 93.7 – 89.4 cfm (model/pressure dependent)
• Total absorbed power at full load (116 psi): 20.5Kw, (145 psi): 22.1Kw
• Power Supply: 208–230/460V/3/60, 60Hz

Cooling Type

• Air-cooled, oil-injected rotary screw Sound Level: 70 dBA
• Duty Cycle: 100% continuous operation

Controller

• Analog, electro-pneumatic, Dimensions (Base Mount): 44.5 x 30.7 x 49.2 in
• Dimensions (Tank Mount): 75 x 30.7 x 72.2 in
• Shipping Weight: 723-1329 lbs. (configuration dependent)
