MARK•Air Compressors•Stock in Rock Hill,SC

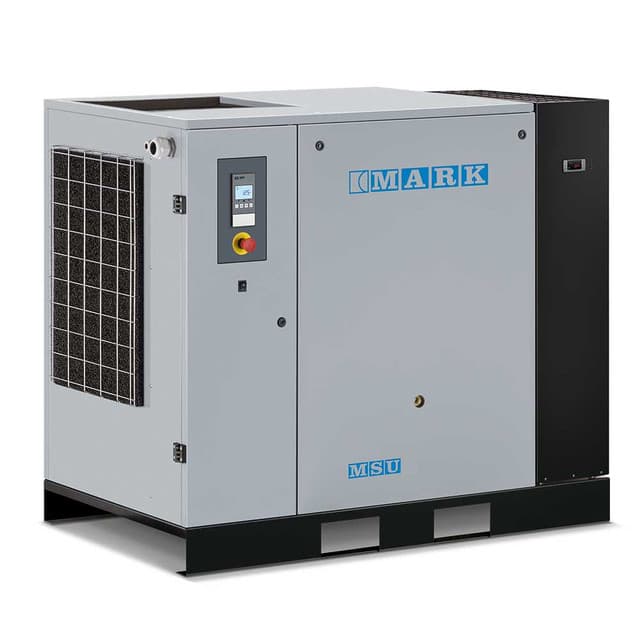

Mark MSU-40, 40hp Rotary Screw Air Compressor

The Mark Model MSU40, comes with TEFC tri-voltage motor with optional refrigerated air dryer.

Operating Pressure

  • 125 – 150 psig
  • Flow Rate: 154.9 – 132.9 cfm (model/pressure dependent)
  • Total absorbed power at full load (125 psi): 36.9Kw, (145 psi): 34.4Kw
  • Power Supply: 230/460V/3/60, 60Hz

Cooling Type

  • Air-cooled, oil-injected rotary screw Sound Level: 71 dBA
  • Duty Cycle: 100% continuous operation

Controller

  • Analog, electro-pneumatic, Dimensions (Base Mount): 44.5 x 30.7 x 49.2 in.
  • Shipping Weight: 979-1087 lbs. (configuration dependent)
Starting at$18,360.00
Quantity
1

Configure

Taxes & shipping calculated at checkout.
