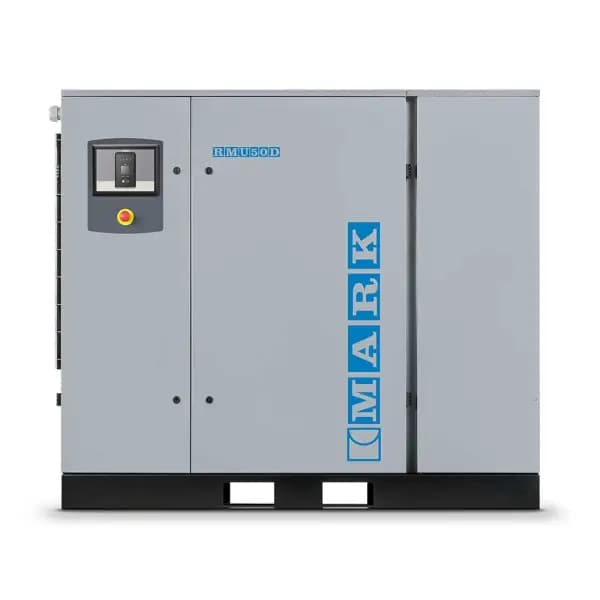

Mark RMU-50, 50hp Rotary Screw Air Compressor

The Mark Model RMU50, comes with TEFC tri-voltage motor with optional refrigerated air dryer.

Operating Pressure

• 100 – 125 psig
• Flow Rate: 262.3 – 215.1 cfm (model/pressure dependent)
• Total absorbed power at full load (100 psi): 45Kw, (125 psi): 45.5Kw
• Power Supply: 230/3/60 or 460/3/60

VAC, 60Hz Cooling Type

• Air-cooled, oil-injected rotary screw Sound Level: 73 dBA
• Duty Cycle: 100% continuous operation

Controller

• Analog, electro-pneumatic, Dimensions (No Dryer): 52 x 32.7 x 61.2 in.,
• Dimensions (with Dryer) 71.3 x 32.7 x 61.2 in. Shipping Weight: 1345-1605 lbs. (configuration dependent)
