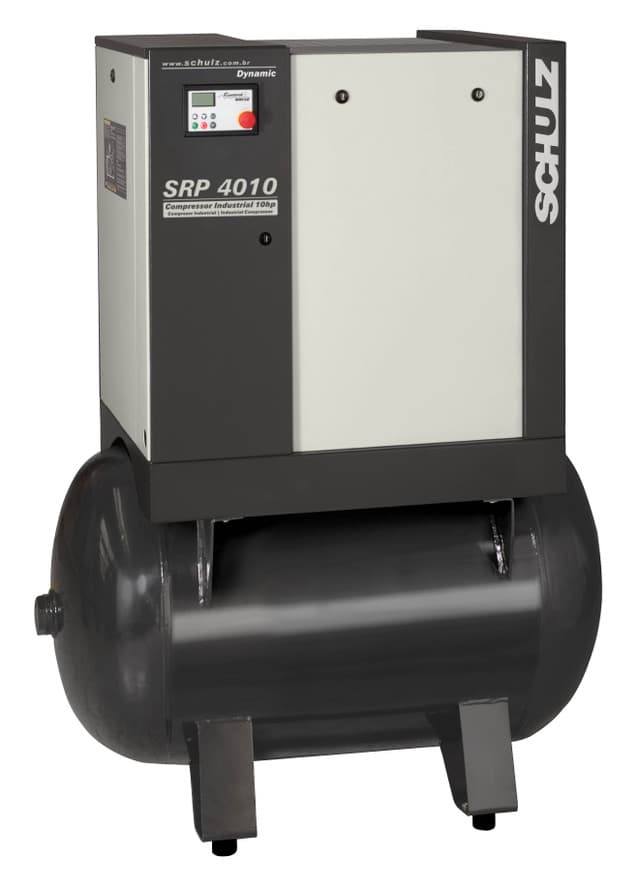

Schulz SRP4010R, 10hp Rotary Screw Air Compressor

Schulz, Model SRP4010R, comes with Tri-voltage motor and 120 gallon tank.

Operating Pressure

• 125 PSIG,
• Flow Rate: 35 cfm (model/pressure dependent)
• Total absorbed power at full load (125 psi): 7.5Kw, (150 psi):7.7Kw, Motor
• Power Supply: 208–230/460V, 3-phase, 60Hz

Cooling Type

• Air-cooled, oil-injected rotary screw Sound Level: 70 dBA
• Duty Cycle: 100% continuous operation
• Controller: Schulz 3 controller
• Dimensions (Tank Mount): 39.8 x 58.5 x 27.6 in
• Weight: 613 lbs. (configuration dependent)
