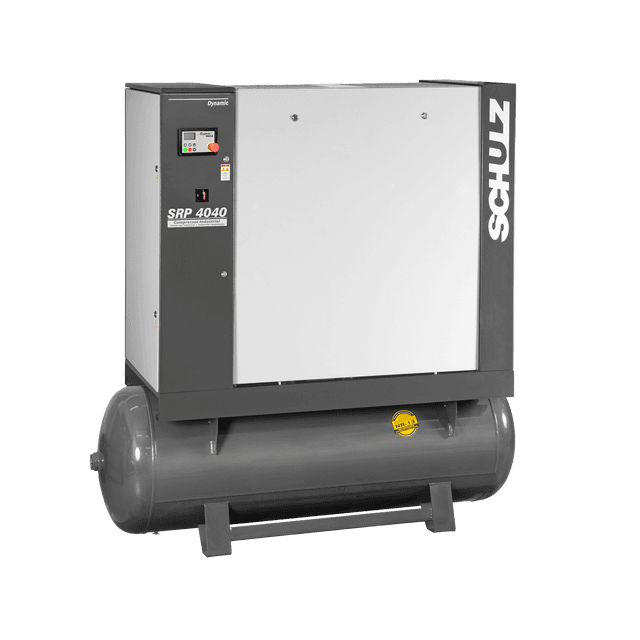

Schulz, 40 hp rotary screw air compressor
1/1
Schulz•Air Compressors•Factory Stock

Schulz SRP4040R, 40hp Rotary Screw Air Compressor

Schulz, Model SRP4040R, comes with Tri-voltage motor and 120 gallon tank.

Operating Pressure

  • 125 PSIG,
  • Flow Rate: 150 cfm (model/pressure dependent)
  • Total absorbed power at full load (125 psi): 30Kw, (150 psi):32Kw, Motor
  • Power Supply: 208–230/460V, 3-phase, 60Hz

Cooling Type

  • Air-cooled, oil-injected rotary screw Sound Level: 76 dBA
  • Duty Cycle: 100% continuous operation

Controller

  • Schulz 2 controller Dimensions (Tank Mount): 74.8 x 74.8 x 31.9 in
  • Weight: 1611 lbs. (configuration dependent)
Starting at$18,637.00
Quantity
1

Configure

Taxes & shipping calculated at checkout.
