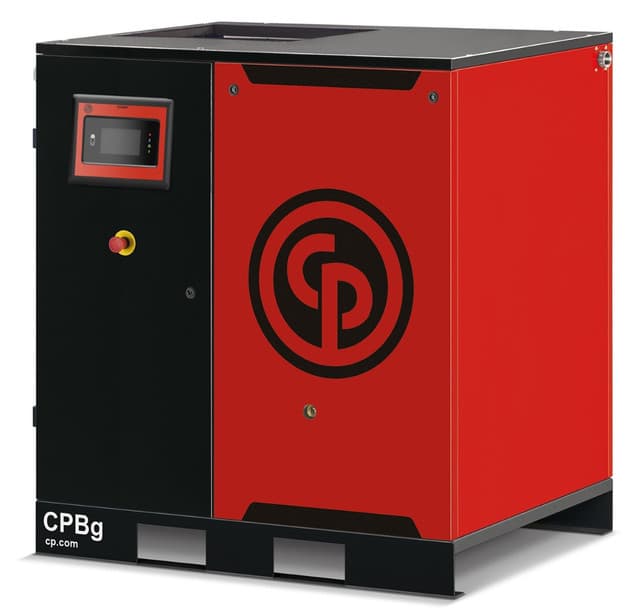

Chicago Pneumatic CPBg-20, Fixed Speed 20hp Rotary Screw Air Compressor

Chicago Pneumatic, Model CPBg 20, comes with Tri-voltage motor with optional tank and refrigerated air dryer.

Operating Pressure

• 125-150 PSIG,
• Flow Rate: 88.6-83.6 cfm (model/pressure dependent)
• Total absorbed power at full load (125 psi): 19.7Kw, (150 psi):20.1Kw, Motor
• Power Supply: 208–230/460V or 575V, 3-phase, 60Hz

Cooling Type

• Air-cooled, oil-injected rotary screw Sound Level: 67 dBA
• Duty Cycle: 100% continuous operation

Controller

• ES4000-Touch Controller, Dimensions (Base Mount): 47.2 x 32.9 x 48 in
• Dimensions (Tank Mount): 76.4 x 32.9 x 72.2 in
• Weight: 904 – 1505 lbs. (configuration dependent)
